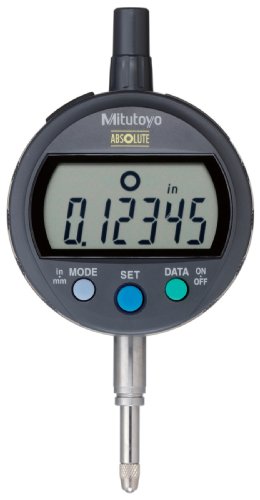

Mitutoyo 543-391B Absolute LCD Digimatic Indicator ID-C, Standard Type, M2.5X0.45 Thread, 8mm Stem Dia., Flat Back, 0-0.5"/0-12.7mm Range, 0.00005"/0.001mm Graduation, /-0.0001" Accuracy
 (

UPC 603908512301
REGISTERED: 09/22/23
UPDATED: 11/26/25
Mitutoyo 543-391B Absolute LCD Digimatic Indicator ID-C, Standard Type, M2.5X0.45 Thread, 8mm Stem Dia., Flat Back, 0-0.5
Rank: 4%
Blackstar Blackstar Blackstar Blackstar Blackstar
Mitutoyo 543-391B Absolute LCD Digimatic Indicator ID-C, Standard Type, M2.5X0.45 Thread, 8mm Stem Dia., Flat Back, 0-0.5"/0-12.7mm Range, 0.00005"/0.001mm Graduation, /-0.0001" Accuracy


Specifications
  • Mitutoyo 543-391B Absolute LCD Digimatic Indicator ID-C, Standard Type, M2.5X0.45 Thread, 8mm Stem Dia., Flat Back, 0-0.5"/0-12.7mm Range, 0.00005"/0.001mm Graduation, /-0.0001" Accuracy available on November 15 2014 from Amazon for 368.85
  • UPC bar code 603908512301 ξ1 registered November 15 2014
  • Product category is Electronic
  • Manufacturered by Mitutoyo
  • 543-391B

  • Product weight is 0.6 lbs.
  • Mitutoyo Absolute Digimatic inch/metric electronic indicator is designed for taking measurements in machining, layout, and inspection work * Choice of measurement range and resolution * 8mm stem diameter and M2.5 x 0.45 thread * Functions include preset, origin-set, zero-set, judgment, counting direction switching, data output, inch/mm conversion, low voltage alarm, over-flow error, tolerance limit setting * Statistical Process Control (SPC) data output capability (cable not included) The Mitutoyo Absolute Digimatic ID-C series inch/metric electronic indicator has a choice of measurement range and resolution, an 8mm stem diameter, and is designed for taking measurements in machining, layout, and inspection work. The LCD can be rotated 330 degrees for reading from a range of locations. The indicator can be set to zero at any spindle location at the time of powering on. Functions include preset, origin-set, zero-set, judgment, counting direction switching, data output, and inch/mm conversion. An audible alarm can be set to indicate low voltage, over-flow error, and tolerance limits. Statistical Process Control (SPC) data collection can be exported using an SPC cable (not included). The meter is powered with an SR44 battery (included).Dial indicators are also called dial gauges, probe, and electronic indicators. These precision instruments measure small linear distances and object sizes. The dial magnifies the measurement so that it can be easily read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Standard dial indicators measure the displacement along the axis of the indicator. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Dial and dial test indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation.Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.

References
    ^ Mitutoyo 543-391B Absolute LCD Digimatic Indicator ID-C, Standard Type, M2.5X0.45 Thread, 8mm Stem Dia., Flat Back, 0-0.5"/0-12.7mm Range, 0.00005"/0.001mm Graduation, /-0.0001" Accuracy, Mitutoyo. Amazon. (revised Nov 2014)
